Releasing the bottom wishbone on the left and right from the front subframe

NOTE: Perform the steps on the right and left side.

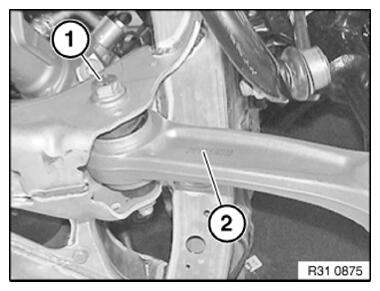

• Loosen screw (1)  . In doing so, counter support at the nut.
• Release the lower wishbone (2)  from the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.
