Installing the steering gear

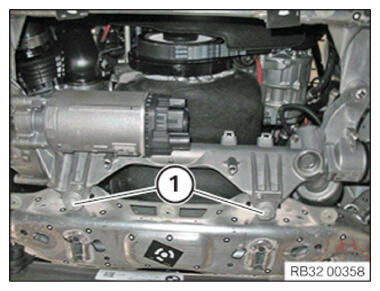

- Position the steering gear at the front axle support.
- Replace the screws (1)
and nuts.
Parts: Bolts, nuts
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Steering box to front axle support | ||
|---|---|---|
| M12 Replace screws and nuts. |
Tightening torque | 100 Nm |
| Angle of rotation | 105° | |
Securing the tie rod on the left and right of the swivel bearing
NOTE:
Perform the steps on the right and left side.

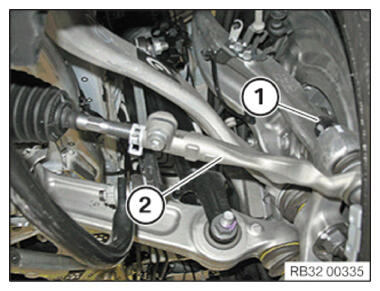

- Position the tie rod (2) on the swivel bearing.
- Replace nut (1)
.
Parts: Nut
- Tighten nut (1) .
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Tie rod end to swivel bearing | ||
|---|---|---|
| M14 Replace nut. |
Tightening torque | 165 Nm |
Attaching the universal joint to steering gear
NOTE:
TECHNICAL INFORMATION
The universal joint can be mounted only in one position.
The universal joint and the steering gear or the steering shaft are encoded to each other.
The clamping bolt must be positioned in the groove of the steering gear or the steering shaft.
The universal joint can be mounted only in one position.
The universal joint and the steering gear or the steering shaft are encoded to each other.
The clamping bolt must be positioned in the groove of the steering gear or the steering shaft.
- Clean the screw threads to remove all remnants of screw lock agent.

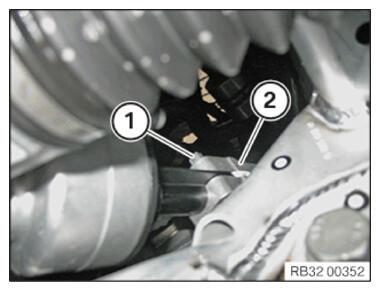

- Slide the universal joint (2) onto the steering gear.
- Replace the screw (1)
.
Parts: Screw
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Universal joint to steering box | ||
|---|---|---|
| M8 Recut screw thread. Replace clamping bolt. No retorque permitted! |
tightening torque | 28 Nm |
