Installing the anti-roll bar

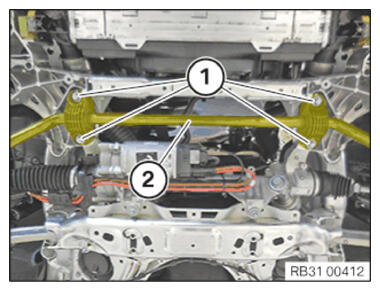

If installed: Installing the anti-roll bar

• Position the anti-roll bar (2)  .
• Replace screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

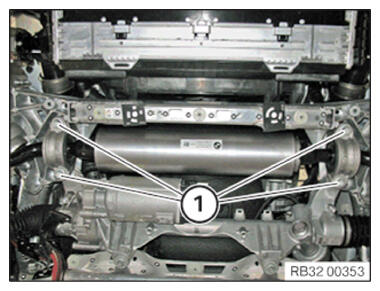

If installed: Install the active stabilizer in front

• Position active stabilizer on front axle support.
• Replace screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Anti-roll bar to front axle support
  M12 Replace screws.	Joining torque	100 Nm
  	Angle of rotation	45°

  Courtesy of BMW OF NORTH AMERICA, INC.

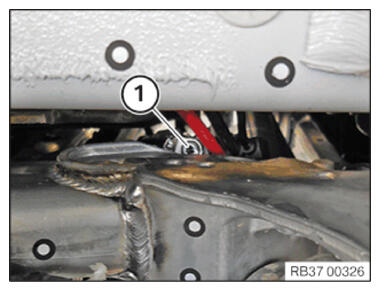

• Position wiring harness on holder.
• Tighten the bolt (1)  with the ground strap on the holder and wiring harness.
  TIGHTENING TORQUE SPECIFICATIONS



  Front active stabilizer cable with ground strap to holder
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

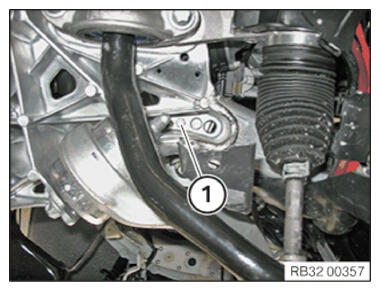

• Position the holder of the connector for the active stabilizer on the front axle support.
• Tighten down screw (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Active stabilizer connector bracket to front axle support
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

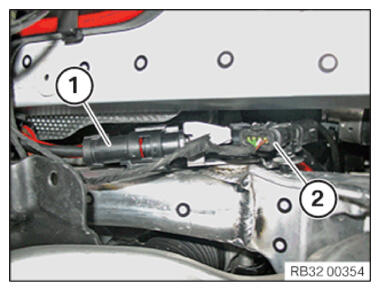

• Connect plug connections (1)  and (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Securing the anti-roll bar link on the left and right to the anti-roll bar

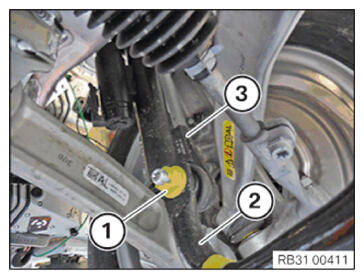

Securing the anti-roll bar link to the anti-roll bar

• Position the anti-roll bar link (3)  on the anti-roll bar (2)  .
• Replace nut (1)  .

  Parts:  Nut

• Tighten nut (1)  .
  NOTE: Counter-hold at the Torx socket.

Courtesy of BMW OF NORTH AMERICA, INC.
