Remove the right engine mount reinforcement strut

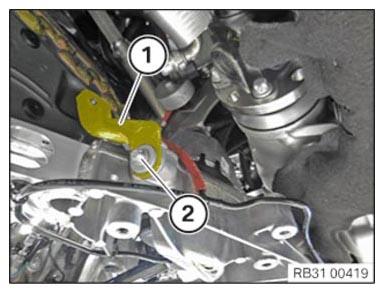

Loosen screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

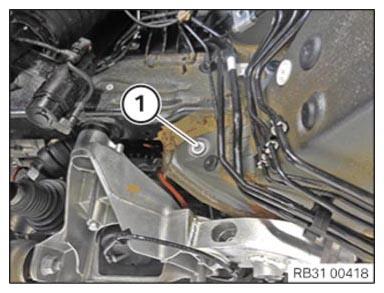

Loosen screw (2) .
Remove reinforcement strut (1) .

G15193921

Courtesy of BMW OF NORTH AMERICA, INC.
