Remove the cover for the steering assembly on the right
Remove the cover of the steering assembly
NOTE:

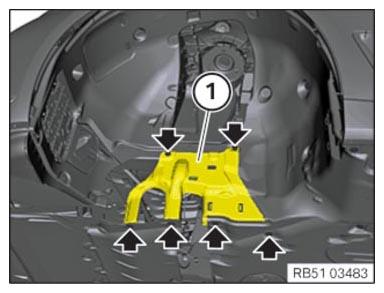

To provide a better overview: Schematic diagram with partially hidden components.
- Release all bolts (arrows).
- Remove cover (1)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
