Remove the coolant hose on the left from the radiator
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

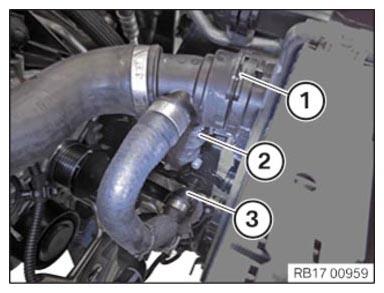

- Unlock the coolant hose (1) on the left at the radiator and detach it.
- Unlock the coolant hose (2) below the coolant hose (1) and detach it.
- Unlock the coolant hose (3) of the auxiliary coolant pump and detach it.
- Catch and dispose of leakage coolant.

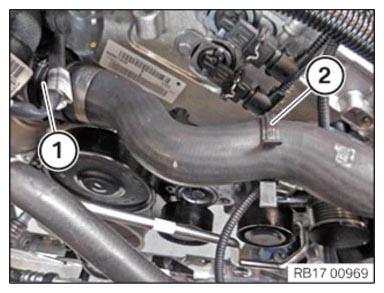

- Unlock and detach the coolant hose (1) from the coolant pump.
- Detach the coolant hose (1) from the clamp (2) , guide it out and remove it.
- Catch and dispose of leakage coolant.
