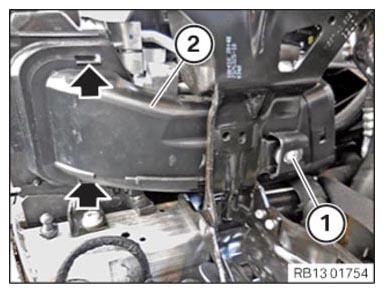

Remove left intake port

Loosen screw (1) .
Unlock the locks (arrows).
Detach the intake port (2) from the air duct.
Loosen the intake port (2) from the support towards the rear and remove it towards the front.
