Partially detach the air conditioning compressor

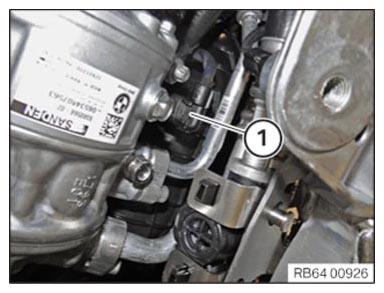

- Unlock the plug connection (1)
on the air conditioning compressor and disconnect.

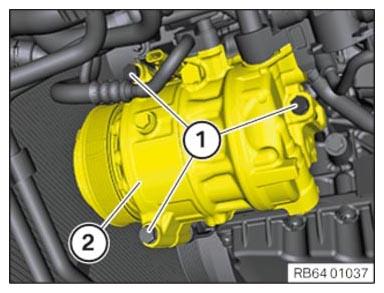

- Loosen screws (1) .
- Remove the air conditioning compressor (2)
from the holder.

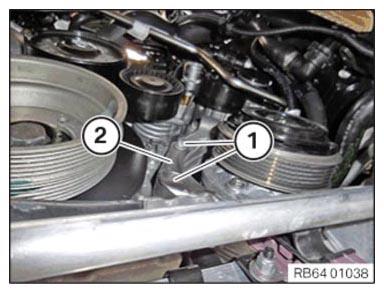

- Loosen screws (1) .
- Remove the holder (2) .
- Set the air conditioning compressor to one side and secure it.
The refrigerant lines are not released.
The refrigerant is not suctioned off.
