Mount air conditioning compressor
- Position the air conditioning compressor.

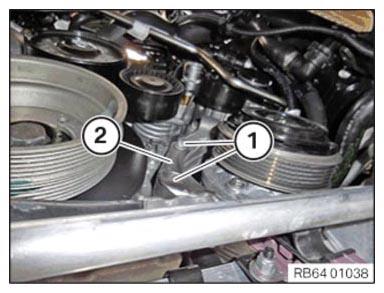

- Install holder (2) .
- Tighten the screws (1)
.TIGHTENING TORQUES SPECIFICATION

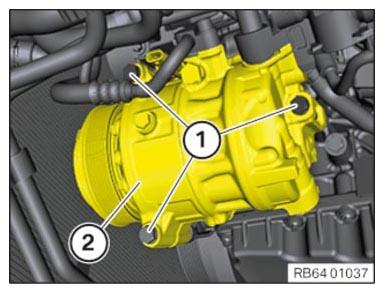

Air conditioning compressor holder to crankcase M8 Tightening torque 23 Nm - Mount the air conditioning compressor (2) on the holder.
- Tighten the screws (1)
.TIGHTENING TORQUES SPECIFICATION

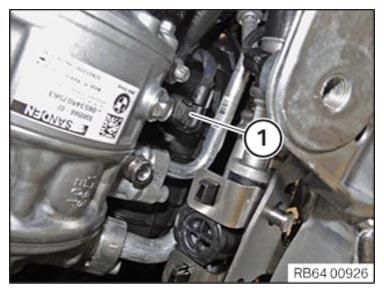

Air conditioning compressor to holder/engine M8 tightening torque 22 Nm - Connect and lock the connector (1) on the air conditioning compressor.
