Installing the left-hand air duct
Installing the left-hand air duct

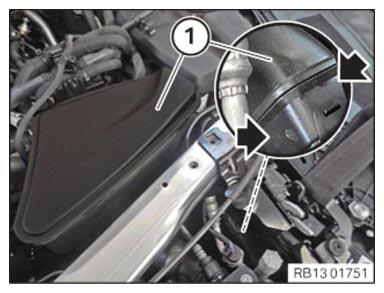

Slide the air duct
(1)
into the intake port.
The locking mechanisms (arrows) must engage.
