Installing left intake port

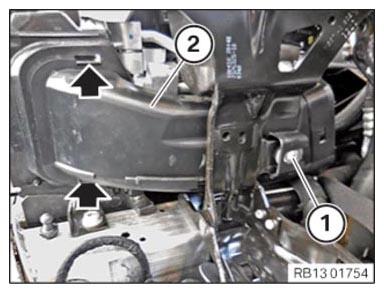

- Insert the intake port (2)
and mount it to the support.
- Mount the intake port (2)
on the air duct and lock the locks (arrows).
- Tighten down screw (1)
.
TIGHTENING TORQUES SPECIFICATION
| Intake port to support |
| Tightening torque |
4 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
