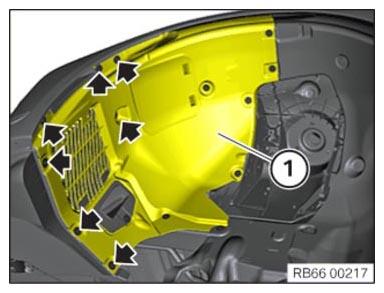

Installing front section of the front wheel arch cover (partially removed)

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

NOTE: Description is for left component only. Procedure on the right side is identical.

• Mount front wheel arch cover (1)  .
• Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Wheel arch cover
screw	Tightening torque	3 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
