Install the rear section of the front wheel arch cover on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the rear section of the front wheel arch cover
NOTE:

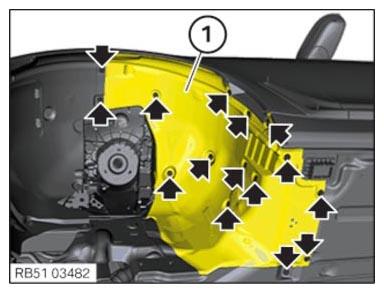

To provide a better overview: Schematic diagram with partially hidden components.
- Guide the wheel arch cover (1) in.
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover | ||
| screw | Tightening torque | 3 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
