Install the left coolant hose on the radiator
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Insert the coolant hose (1) and connect it to the coolant pump and lock audibly.
- Secure the coolant hose (1)
at the clamp (2)
.

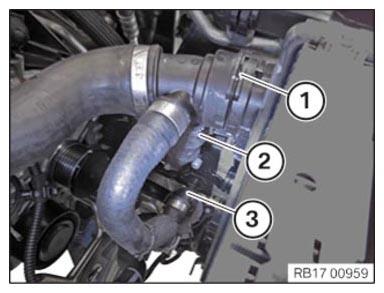

- Connect the coolant hose (1) to the radiator on the left and audibly lock it.
- Connect coolant hose (2) to coolant hose (1) and audibly lock it.
- Connect coolant hose (3) to the auxiliary coolant pump and lock.
