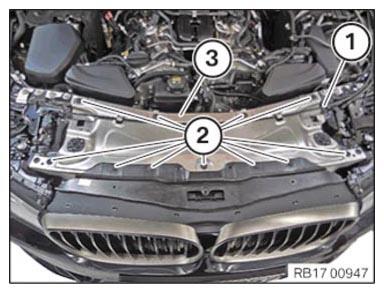

Install the center top cross connection

• Install the center top cross connection (3)  .
• Tighten down screws (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Front cross connection
  screw	tightening torque	11.8 Nm

• Attach the cable (1)  .
