Connecting all the connectors to the DME control unit for cylinders 7 to 12

NOTE: TECHNICAL INFORMATION
If control units are disconnected, fault memory entries and functional limitations may occur.
The fault memory entries must be read out and, if necessary, deleted.

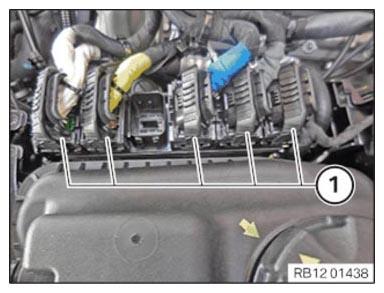

• Connect all the connectors (1)  to the DME control unit from the rear to the front.

  The connectors must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

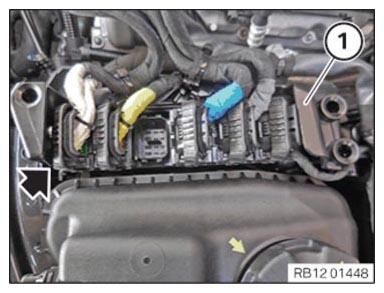

• Install the cover (1)  .
• Engage the lock (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.
