Removing the left heat shield

Removing the gasoline particulate filter of the cylinders 5 to 8

WARNING: Hot exhaust system.
Risk of burning!

Any work must exclusively be carried out with an exhaust system that has cooled down.

NOTE: RISK OF DAMAGE
Damage to the gasoline particulate filter.
Forcibly removing, installing or dropping the gasoline particulate filter down will damage it.

Remove and install the gasoline particulate filter without damaging it and without applying external force.
Avoid impacts/knocks to the gasoline particulate filter (e.g. by tools, falling down, hard contact with base).

Version A (G14/G15/G16):
Remove screws (arrows).

Feed out and remove the front underbody protection (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Version B (G14/G15/G16):
Loosen screws (1) .

Feed out and remove the front underbody protection (2).

Courtesy of BMW OF NORTH AMERICA, INC.
G11/G12/G30:

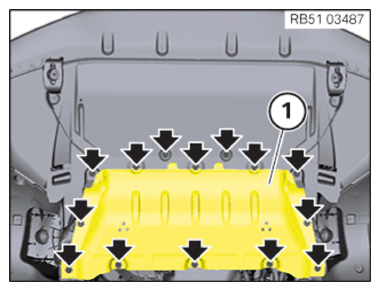

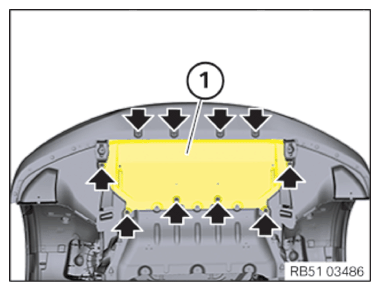

Remove screws (arrows).

Feed out the front underbody protection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Driving without thrust field is not permissible.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

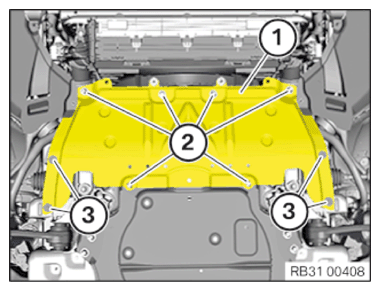

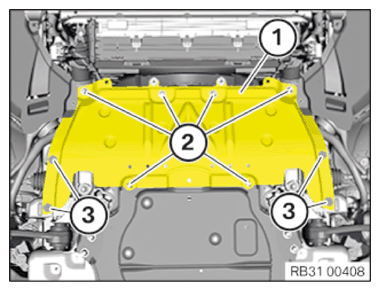

Loosen screws (2) to (4).
Remove thrust field (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

NOTE: TECHNICAL INFORMATION
Driving without thrust field is not permissible.

Courtesy of BMW OF NORTH AMERICA, INC.
Version A:
Loosen screws (3) .

Loosen screws (2) .

Guide out and remove the front thrust field (1) .
Version B:

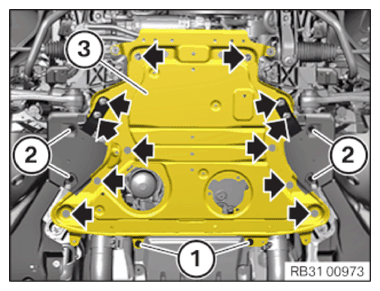

Loosen screws (1) .

Release the screws (arrows).

Loosen screws (2) .

Guide out and remove the front thrust field (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Version C:

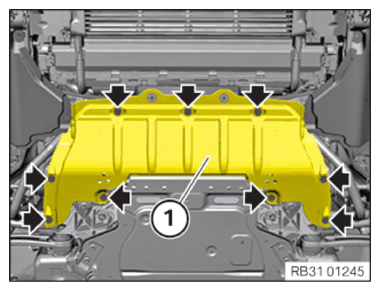

Remove screws (arrows).

Feed out and remove the underbody protection (1) of the steering gear.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Courtesy of BMW OF NORTH AMERICA, INC.
Version A:
Release all bolts (arrows).

Guide out underbody protection (1) of the steering gear.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

NOTE: TECHNICAL INFORMATION
Driving without thrust field is not permissible.

Courtesy of BMW OF NORTH AMERICA, INC.

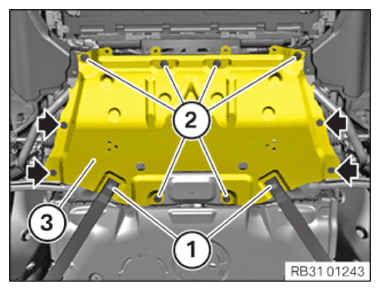

Version B:
Loosen screws (3) .

Loosen screws (2) .

Remove front stiffening plate (1) .

NOTE: TECHNICAL INFORMATION
Secure component against falling.

NOTE: TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Loosen screws (1) and (2) .
Remove screws (arrows).
Guide out the thrust field (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Driving without thrust field is not permissible.

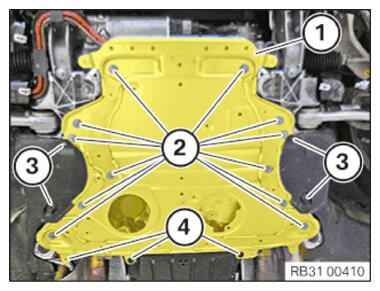

Loosen screws (3) and (4) .
Loosen screws (2) .
Remove thrust field (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

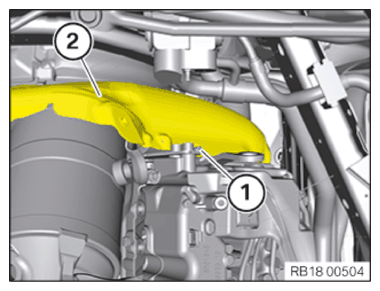

Loosen the nuts (1) .
Remove the heat shield (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

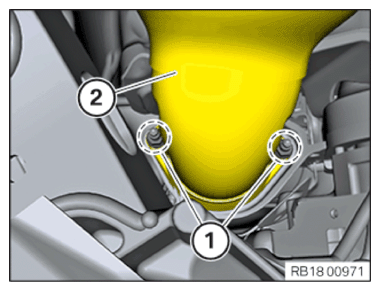

Release nuts (1) on gasoline particulate filter (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release screws (1) on gasoline particulate filter (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

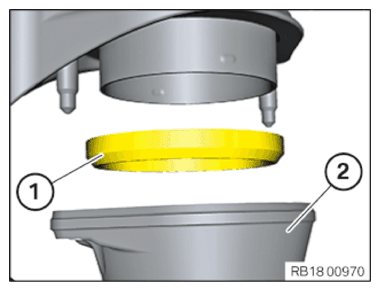

Remove the seal (1) .
Guide out and remove gasoline particulate filter (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Version with S1 DEA:

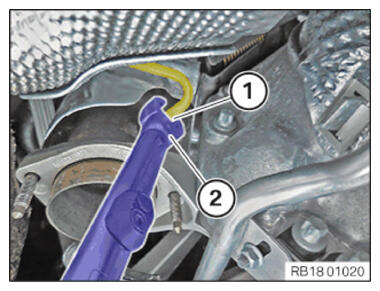

Release the pressure line (1) with an open ring wrench (2) .

Feed out the pressure line (1) downwards with the gasoline particulate filter sensor and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Version with S1DEA:

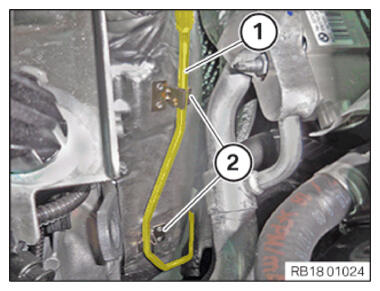

Unclip the pressure line (1) from the retaining clips (2) .

Feed out the pressure line (1) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

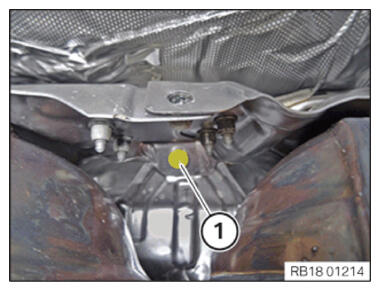

Loosen screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) at the bottom of the heat shield (2) .
Release the heat shield (2) from the lower heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.

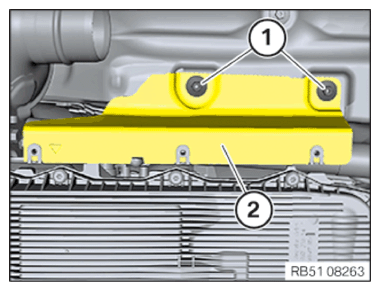

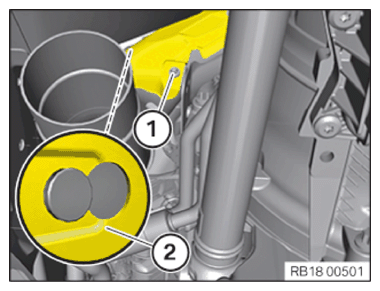

Release the screw (1) at the top of the heat shield (2) .
Release left heat shield (2) from the other heat shields.
Feed out left heat shield (2) to the top and remove.
