Removing the left and right catalytic converters

NOTE: TECHNICAL INFORMATION
In order to be able to remove the catalytic converter for cylinders 5 to 8, the catalytic converter for cylinders 1 to 4 also needs to be removed.

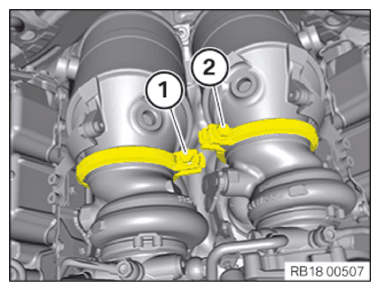

Loosen circlip (1) and remove.
Loosen circlip (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

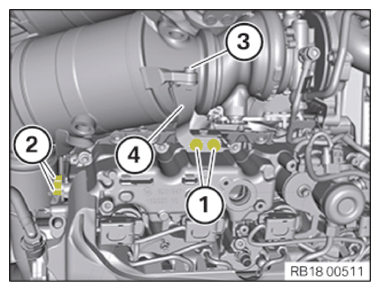

Loosen screws (1) .
Loosen screws (2) .
Loosen screw (3) .
Remove holder (4) .

Courtesy of BMW OF NORTH AMERICA, INC.

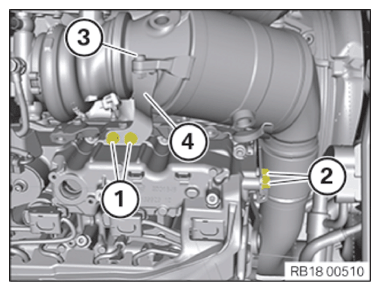

Loosen screws (1) .
Loosen screws (2) .
Loosen screw (3) .
Remove holder (4) .

Courtesy of BMW OF NORTH AMERICA, INC.

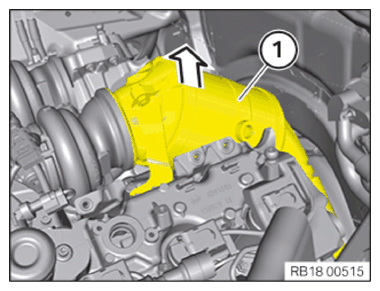

Remove the catalytic converter (1) for the cylinders 1 to 4 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew and remove the catalytic converter (1) for the cylinders 1 to 4 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

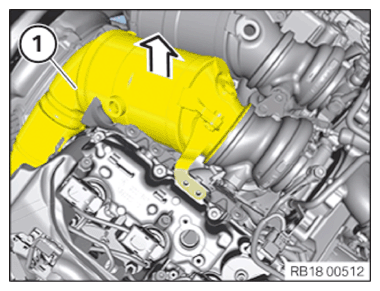

Remove the catalytic converter (1) for the cylinders 5 to 8 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

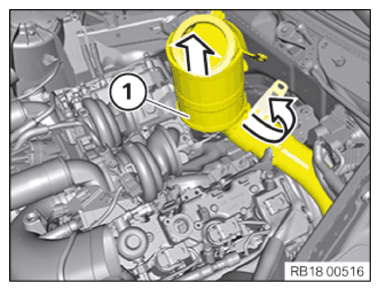

Unscrew and remove the catalytic converter (1) for the cylinders 5 to 8 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
