Partly release the wiring harness from the cylinder head cover on the left

NOTE: RISK OF DAMAGE
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.

Screw all screw points of the cable ducts on again. Some of the screw points are also grounding points.

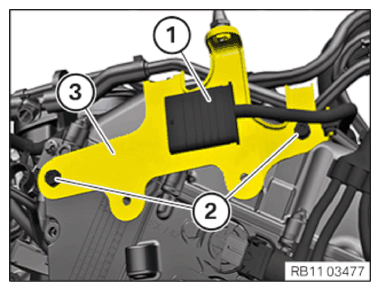

Turn the connector (1) and release from the holder (3) .
Loosen screws (2) .
Guide out and remove holder (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

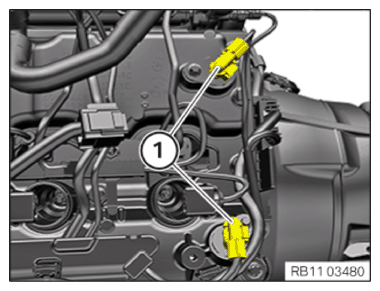

Unlock connector (1) and detach.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

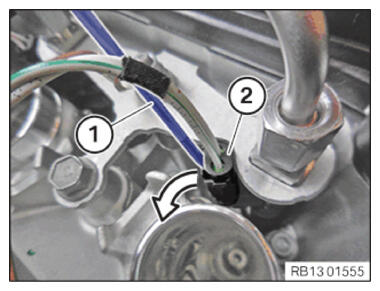

Unlock the lock in the direction of the arrow with a small slotted screwdriver (1) .
Unlock and disconnect the connectors (2) from the injectors with a small slotted screwdriver (1) .
Disconnect the connector (2) on the connector housing from the injector.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The description is provided only at one component. The procedure is the same for all other components.

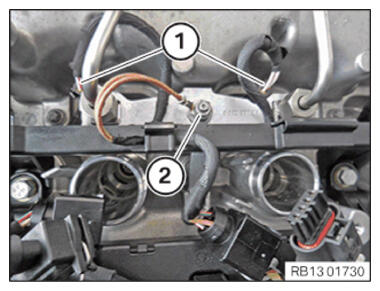

Unlock the connector (1) and detach from the injectors.
Release nuts (2) and remove ground cable.

Courtesy of BMW OF NORTH AMERICA, INC.

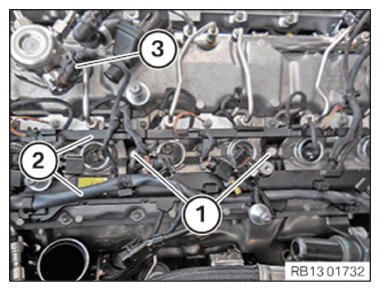

Loosen screws (1) .
Unlock connector (3) and disconnect from high pressure pump.
Release the wiring harnesses (2) from the cylinder head cover and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
