Partially fasten the wiring harness on the left cylinder head cover
NOTE:
RISK OF DAMAGE
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
- Screw all screw points of the cable ducts on again. Some of the screw points are also grounding points.

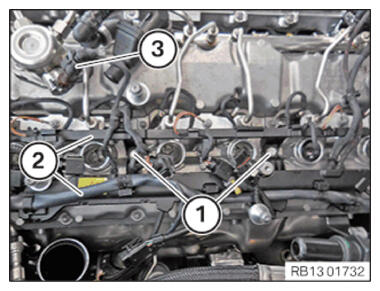

- Position the wiring harnesses (2) at the cylinder head cover.
- Connect the connectors (3) to the high pressure pump and lock audibly.
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

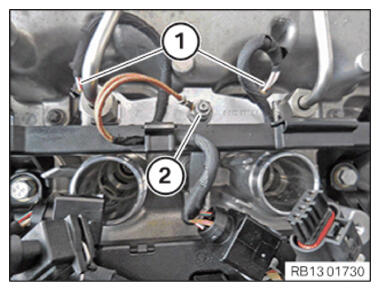

Cable duct to cylinder head cover/cylinder head M6 screw tightening torque 10 Nm NOTE: The description is provided only at one component. The procedure is the same for all other components. - Connect all connectors (1) to the injectors and lock audibly.
- Connect ground cable to ground pin and tighten the nuts (2)
.TIGHTENING TORQUE SPECIFICATIONS
Ground cable on cylinder head cover/ground pin Nut M5 tightening torque 4.6 Nm NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Check all connectors (1)
on the injectors again to ensure they are correctly fitted.
All connectors must be felt engaging.

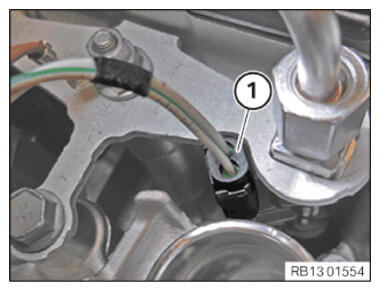

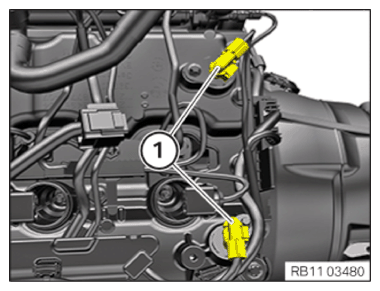

- Connect and lock the connector (1)
.
The locks must engage audibly.

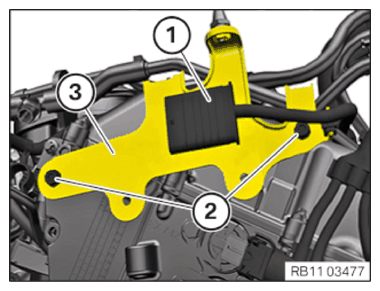

- Position holder (3) .
- Tighten screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Holder to cylinder head M6 Tightening torque 10 Nm - Rotate the connector (1)
and fasten to holder (3)
.
