Installing the left and right catalytic converters
NOTE:
TECHNICAL INFORMATION
In order to be able to remove the catalytic converter for cylinders 5 to 8, the catalytic converter for cylinders 1 to 4 also needs to be removed.
In order to be able to remove the catalytic converter for cylinders 5 to 8, the catalytic converter for cylinders 1 to 4 also needs to be removed.
- Replace seals on exhaust turbocharger.
Parts: Seals

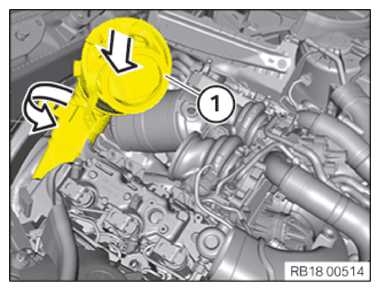

- Guide in and install the catalytic converter (1) for cylinders 5 to 8 in the arrow direction.
- Connect the catalytic converter (1)
for cylinders 5 to 8 to the exhaust turbocharger.

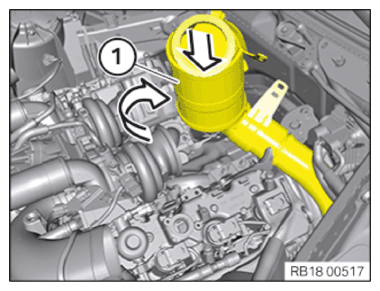

- Guide in and install the catalytic converter (1) for cylinders 1 to 4 in the arrow direction.
- Connect the catalytic converter (1)
for cylinders 1 to 4 to the exhaust gas turbocharger.

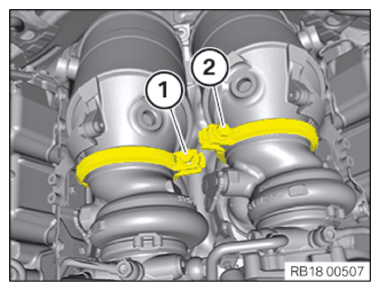

- Replace clamps (1)
and (2)
.
Parts: Clamps
- Mount clamps (1)
and (2)
and tighten.
The circlips (1) and (2) must be mounted with the screw connection to the inside.
TIGHTENING TORQUE SPECIFICATIONSCatalytic converter to exhaust turbocharger cl Replace clamp after disassembly. Tightening torque 14 Nm - Install holder (4) .

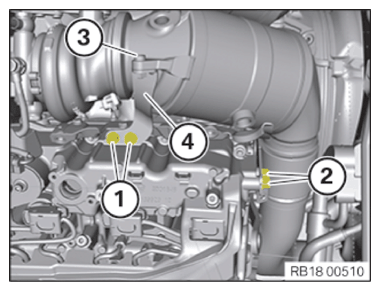

- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Catalytic converter on cylinder head/cylinder head cover/holder M8x20 Tightening torque 21 Nm - Tighten down screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Catalytic converter on cylinder head/cylinder head cover/holder M8x20 Tightening torque 21 Nm - Tighten down screw (3)
.TIGHTENING TORQUE SPECIFICATIONS

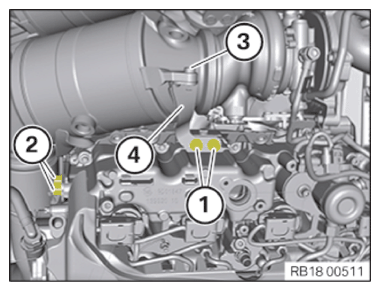

Catalytic converter on cylinder head/cylinder head cover/holder M8x20 Tightening torque 21 Nm - Install holder (4) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Catalytic converter on cylinder head/cylinder head cover/holder M8x20 Tightening torque 21 Nm - Tighten down screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Catalytic converter on cylinder head/cylinder head cover/holder M8x20 Tightening torque 21 Nm - Tighten down screw (3)
.TIGHTENING TORQUE SPECIFICATIONS
Catalytic converter on cylinder head/cylinder head cover/holder M8x20 Tightening torque 21 Nm
