Install the coolant expansion tank for the low-temperature coolant circuit
Install the coolant expansion tank for the low-temperature coolant circuit

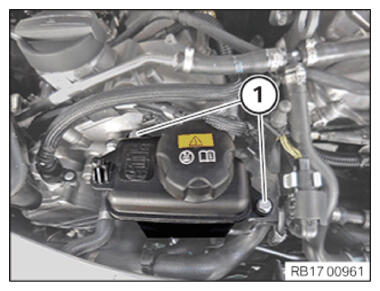

Position the coolant expansion tank for the low-temperature coolant circuit at the holder.
Tighten the screws
(1)
.
TIGHTENING TORQUE SPECIFICATIONS
Coolant expansion tank for the low-temperature coolant circuit to holder
M6
Tightening torque
10 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
