Attaching coolant line for left exhaust turbocharger
Attaching coolant line for left exhaust turbocharger

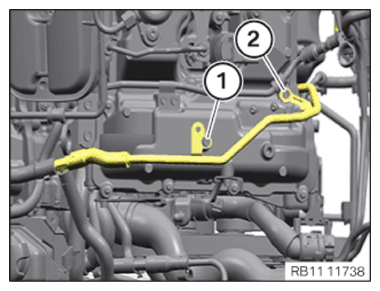

Position the coolant feed line.
Tighten down screw
(1)
.
TIGHTENING TORQUE SPECIFICATIONS
Coolant feed line to cylinder head cover
M6x16
Tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screw
(2)
.
TIGHTENING TORQUE SPECIFICATIONS
Coolant feed line to cylinder head cover
M6x16
Tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
