Installing the right throttle body
- Replace the seal between the throttle body and the intake plenum.
Parts: Gasket
- Check the plug connection for coolant residue. If necessary, fuse clean plug connection with compressed air.

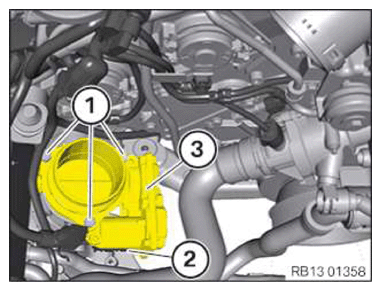

- Attach connector (2) to the throttle body and lock it audibly.
- Mount the throttle body (3) on the intake plenum and fasten it with the screws (1).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Throttle body to intake plenum | ||
|---|---|---|
| 6.0x50 | tightening torque | 7 Nm |
Follow-up work
- Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE TURBOCHARGER .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING FRONT CROSS CONNECTION (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING BOTH FRONT-END STRUTS .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
