Fixing the engine in the installation position on cylinder 1 (set valve timings)

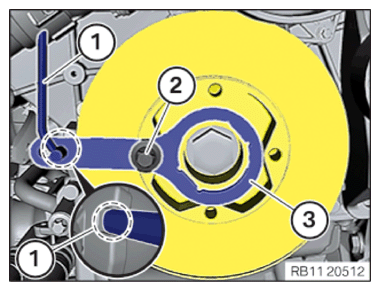

- Position special tool 0 496 366 (11 8 570) (3) on the vibration absorber.
- Position special tool 0 493 882 (11 9 190) (1)
in special tool 0 496 366 (11 8 570)
.
The special tool 0 493 882 (11 9 190) (1) must not be inserted very far as it may collide with other components while turning the crankshaft.
- Position reversible ratchet.
- Rotate engine on the central bolt until the special tool lines up with the engine block marks.
- Hand-tighten the special tool 0 496 366 (11 8 570) (3) with a screw (2) of the belt pulley on the vibration absorber.
- Slide the crankshaft in the installation position with the special tool 0 493 882 (11 9 190) (1) at the marks and fix it.
