Installing exhaust camshaft adjuster of cylinders 1 to 6

Replace exhaust camshaft adjuster (1) if necessary.
Parts: Exhaust camshaft adjuster

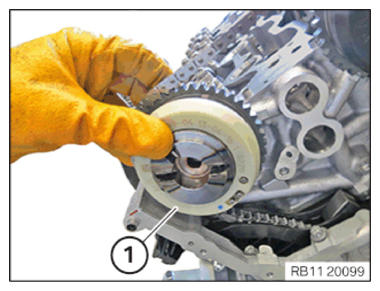

Position the exhaust camshaft adjuster (1) with the timing chain on the exhaust camshaft.
The exhaust cam phaser is marked with "Off" .

The exhaust cam phaser (1) can be positioned freely on the camshaft.
