Securing the central bolt of the variable camshaft timing control of the intake

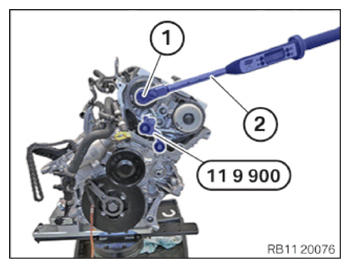

• Tighten central bolt (1)  on the intake adjuster with an electronic torque/torsion angle wrench (2)  .

TIGHTENING TORQUE SPECIFICATIONS

Variable camshaft timing control central bolt to camshaft
M10x1 Replace screws and grease contact surface with copper paste.	1. Joining torque	30 Nm
	2. Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.
