Secure both central bolts of the VANOS gear

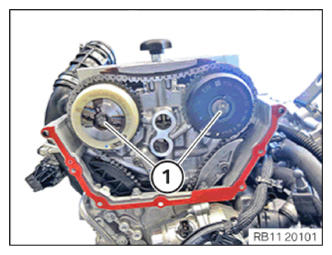

NOTE: The figure shows cylinders 1 to 6.

Apply the central bolts (1) of the exhaust and intake adjuster hand-tight.

G15139035

Courtesy of BMW OF NORTH AMERICA, INC.
