Preloading the timing chain of cylinder bank 2
NOTE:
RISK OF DAMAGE
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.
Damage to timing chain or timing chain drive.
Turning the engine without chain tensioner or special tool can result in damage to the timing chain and timing chain drive.
- Always turn the engine with the chain tensioner or the special tool.

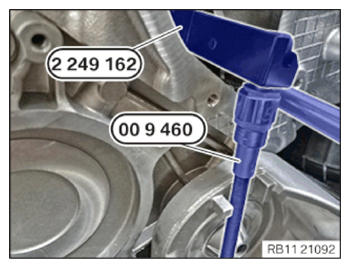

- Position the special tool 2 249 162 on the cylinder head and apply the screws (1) hand-tight.
- Exchange the screw (2) on the special tool 2 249 162 with an (M8x15) hexagon screw
,
- Pretension special tool 2 249 162
using special tool 0 496 778 (00 9 460)
at 0.6 Nm.
The flexible shaft on the special tool 0 496 778 (00 9 460) must not touch any other components, as the torque value will be falsified.
TIGHTENING TORQUE SPECIFICATIONSPreload timing chain tightening torque 0.6 Nm
