Installing right intake system
NOTE:
TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness.
Maintain conditions of absolute cleanliness.

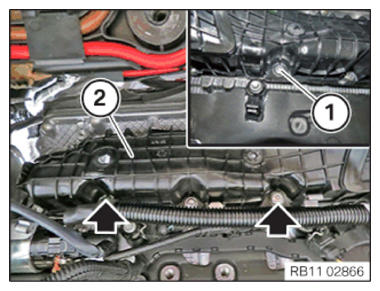

- Attach intake system (2) on the cylinder head.
- Tighten both screws M8 (arrows) hand-tight.
- (1) Hand-tighten the screws M6.
- Tighten the screws M8 with the Torx socket T40 (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Intake plenum to cylinder head M8 T40 | ||
|---|---|---|
| M8x33 | Tightening torque | 20 Nm |
- Tighten the screws M6 with the Torx socket T30 (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Intake plenum to cylinder head M6 T30 | ||
|---|---|---|
| M6x30 | Tightening torque | 10 Nm |
