Installing left intake system
NOTE:
TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness.
Maintain conditions of absolute cleanliness.

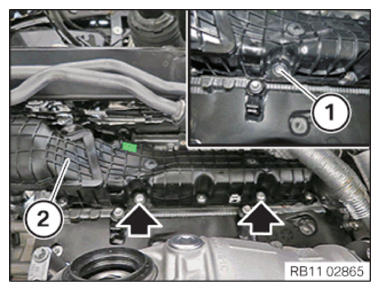

- Attach intake system (2) on cylinder head. Pay attention to the fastening on the cylinder head while doing this.
- Hand-tighten both bolts M8 (arrows).
- (1) Hand-tighten the bolts M6.
- Tighten the bolts M8 with internal Torx T40 (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Intake plenum to cylinder head M8 T40 | ||
|---|---|---|
| M8x33 | Tightening torque | 20 Nm |
- Tighten the bolts M6 with internal Torx T30 (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Intake plenum to cylinder head M6 T30 | ||
|---|---|---|
| M6x30 | Tightening torque | 10 Nm |
