Install the engine bridge
Prepared engine bridge
- Loosen the sealing cap (1)
from the coolant expansion tank.
- Unlock plug connection (1) and disconnect.
- Unclip the wiring harness at the wiring harness mounting (2)
.
- Disconnecting the coolant hoses (1)
from the coolant expansion tank (2)
with standard clamping pliers.
- Draw off the coolant with a standard syringe.
- Unlock and disconnect the coolant line (1)
from the coolant expansion tank (2)
.
- Unlock and disconnect the coolant line (1)
from the coolant expansion tank (2)
.
- Unlock and disconnect the coolant line (1)
from the coolant expansion tank (2)
.
- Loosen screws (1) .
- Unclip the coolant line from the bracket in the region (2)
.
- Version with a gasoline particulate filter:
Feed the cable (1) out of the brackets toward the front.
Remove the rear hood seal (2) from the guide toward the inside.
- Version with a gasoline particulate filter:
- Loosen screws (1) .

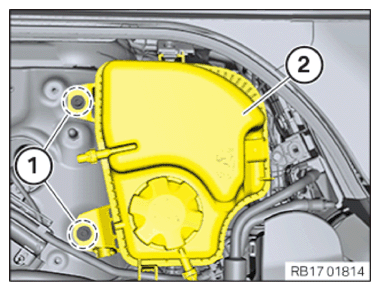

- Carefully slide the coolant expansion tank (2)
upwards and to the front.
- Version with a gasoline particulate filter:
Loosen screw (1) .
Pull the holder of the gasoline particulate sensor (2) upwards and out of the guide.
- Release the wiring harness mounting at the snap-in lug (1)
and put it aside.
- Working upwards, unclip the engine ventilation line (1) .
- Unclip the wiring harness from the attachments (2)
.
- Version with a gasoline particulate filter:
Release the screws (3) .
Release the wiring harness mountings (2) .
Set aside the holder (1) of the gasoline particulate sensor.
- Version with a gasoline particulate filter:
Loosen screw (1) .
Slide the holder of the gasoline particulate sensor (2) with the gasoline particulate sensor (2) towards the rear.
- Version with a gasoline particulate filter:
Unclip cable (1) of the Lambda oxygen sensor from the holder.
Unclip wiring harness (2) .
Unclip intake line (3) .
Unclip the cable of the Lambda oxygen sensor from the bracket (4) .
- Loosen screws (1)
.
- Unclip the transmission wiring harness from the bracket (1) .
- Unclip the plug connector (2)
upwards from the heat shield.
- Unclip the cable of the Lambda oxygen sensor from the bracket (1)
.
- Unlock and disconnect the engine ventilation line from the retaining clip in the region of (1)
.
- Release the hose clamps (1) .
- Remove the bellows (2)
.
- Unlock plug connection (1)
and disconnect.
- Unclip the cable of the Lambda oxygen sensor from the bracket (1)
.
- Unlock plug connection (1)
and disconnect.
- Unlock and disconnect the engine ventilation line from the retaining clip in the region of (1) .
- Feed the connector (2)
of the Lambda oxygen sensor through.
- Unclip the wiring harness mounting (1)
at the heat shield.
- Unclip the wiring harness mounting (1) at the heat shield.
- Lift out heat shield.
- Remove the expanding rivet (1) .
- Remove clips (2)
.
- Remove lid (1) of the washer fluid reservoir to the top.
- Remove seal (2)
of the side panel.
- Remove the expanding rivet (1) .
- Remove clips (2) .
- Remove Bowden cables (3) from the side panel seal.
- Remove the side panel seal.
- Release the expanding rivet (2) .
- Remove the hood seal on the side (1)
.
- Release the wiring harness mountings (1) .
- Release the expanding rivet (3) .
- Remove the hood seal on the side (2)
.
- Release the screws in areas (1)
.
- Prepare special tool 0 490 567 (11 0 020)
.

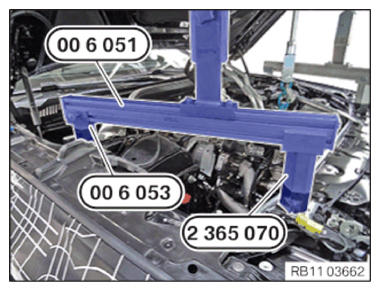

- Mount special tools 2 365 070 and 0 496 438 (00 6 053)
on profile strips 0 496 436 (00 6 051).NOTE: Description is for left component only. Procedure on the right side is identical.

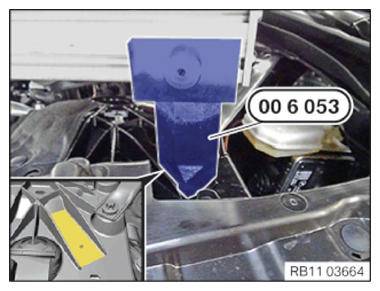

- Position the special tool 0 496 438 (00 6 053)
on the shock towers as shown.NOTE: Description is for left component only. Procedure on the right side is identical.

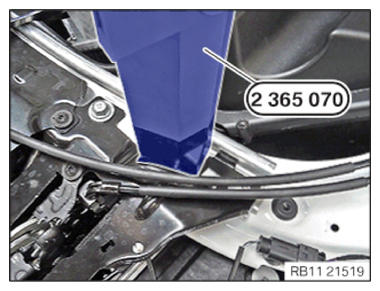

- Position the special tool 2 365 070
on the lock support as shown.NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person. - Carefully position engine bridge (1)
with the special tool 0 490 567 (11 0 020)
with help from an assistant.
- If necessary, release the nuts (1) and position the engine bridge (2) .
Remove the front left and right wheels
Removing the wheel
A wheel lifter is recommended for easier wheel removal and installation without exertion (see Dealer Equipment Catalog).
- In vehicles with M Carbon ceramic brake: It is essential to use the wheel lifter to remove the wheel.
This process is intended to prevent damage to the brake disc.
- If several wheels are removed simultaneously: Use a piece of chalk to mark on each tire the axle and side on which the corresponding wheel is fitted.
- Release the lug bolts (arrows) crosswise and remove the wheel.
- For releasing and tightening lug bolts with the security code: Use the correct adapter from the set of special tools 0 492 518 (36 1 300) .
Remove the cover of the steering assembly on the left and right
Remove the cover of the steering assembly
- Release all bolts (arrows).
- Remove cover (1) .
Remove the rear section of the wheel arch cover on the front left and right
Remove the rear section of the front wheel arch cover front
- Remove screws (arrows).
- Guide the wheel arch cover (1) out.
- Release screw (1)
of the right engine mount with standard tool.
- Prepare tools:
- Torx socket E12
- Reduce from 1/2 inch to 3/8 inch
- Groove 12.5 »
- Short extension of 1/2 inch
- 1/2" reversible ratchet
- Release the screw (1)
of the left engine mount with the prepared tool.
- Lift the engine by 10 mm by turning the special tool 2 361 506 (00 6 103) (1) with the special tool 0 490 567 (11 0 020) .
Follow-up work
- Refer to INSTALLING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
