Move the engine to the installation position
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING TOP CLEAN AIR PIPE .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
- Refer to REMOVING THE RIGHT AND LEFT SIDE HOOD SEALS .
- Refer to REMOVING THE UNIVERSAL JOINT ON THE STEERING GEAR .
Prepared engine bridge
CAUTION:
Components connected to the engine joint or cross member.
Injury hazard!
Injury hazard!
- Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
- Attach the component to correctly mounted engine joints or cross members only.
- Only lift the component, do not shift it forwards, backwards or in transverse direction.

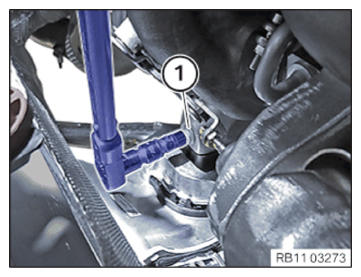

- Insert and position the special tool 2 459 012 at the cylinder head.
- Tighten the screws (1)
of the special tool 2 459 012
.TIGHTENING TORQUE SPECIFICATIONS
Special tool to cylinder head M8 Tightening torque 21.5 Nm - Release the screws (1)
left and right.

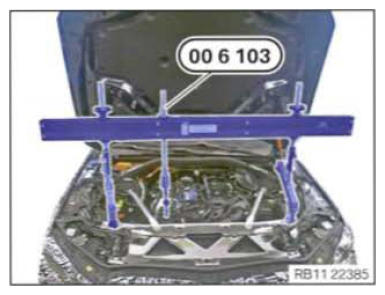

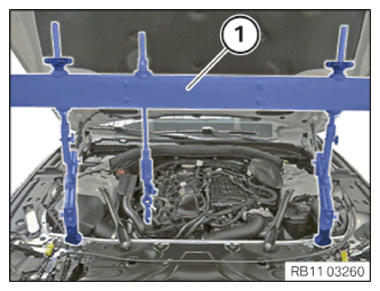

- Position engine bridge (1) carefully
with a support person.

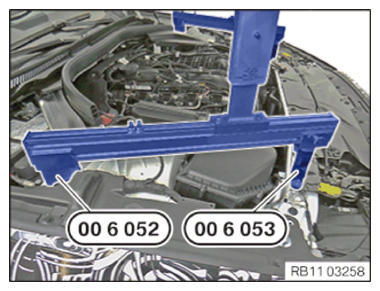

- Make sure that the special tool 0 496 438 (00 6 053) from the set of special tools 0 496 430 (00 6 050) , left, rests correctly on the lock support.
- Make sure that special tool 0 496 437 (00 6 052)
from the set of special tools 0 496 430 (00 6 050)
, left, rests correctly on the shock tower.

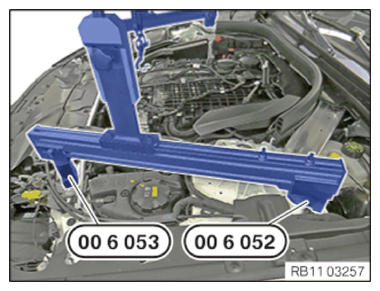

- Make sure that the special tool 0 496 438 (00 6 053) from the set of special tools 0 496 430 (00 6 050) , right, rests correctly on the lock support.
- Make sure that special tool 0 496 437 (00 6 052)
from the set of special tools 0 496 430 (00 6 050)
, right, rests correctly on the shock tower.

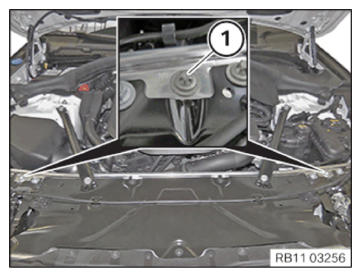

- By shifting the engine bridge on the profile strips of the special tool 0 496 430 (00 6 050) , align it above the engine mounting bracket (1) and screw in place.

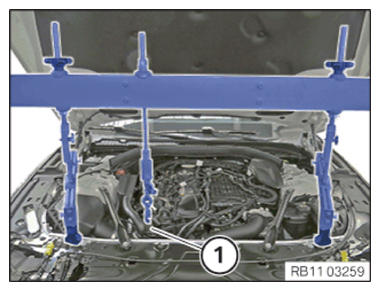

- Align hook 0 496 733 (00 6 080) above engine mounting bracket (1) .
- Connect hook 0 496 733 (00 6 080)
to engine mounting bracket (1)
.

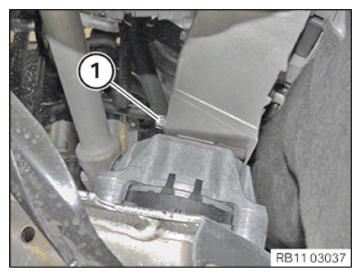

- Release screw (1)
on left engine support bracket from the bottom.
- Release the screw (1)
on the engine support bracket on the right from the top.
- Lift the engine by turning the special tool by 10 mm.
