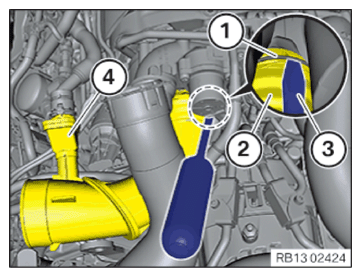

Remove the clean air pipe of cylinder bank 1

Using suitable screwdrivers (3) , lever the retaining clips (1) upwards and unclip from the surrounding guides (2) .
Due to the design, locking the retaining clip (2) in place in the release position is not possible.
Remove clean air pipe of bank 1 (4) .
