Remove left high pressure pump
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

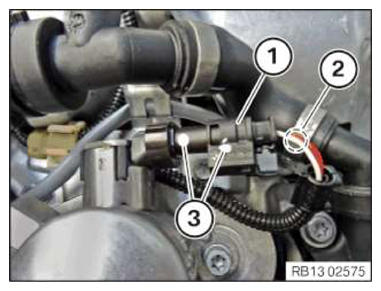

- Ensure that the high pressure pump connector (1) is not confused with the intake air temperature sensor connector.
- If there are no colored marks (3) on the plug connections of the high pressure pump: Attach the marks.
If necessary, identify the connector using the wiring diagram by means of cable colors in area (2) .

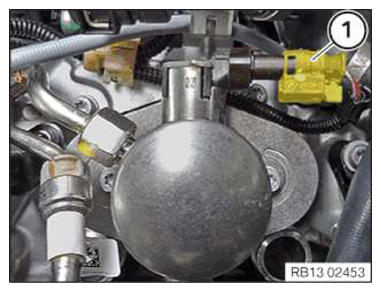

- Unlock plug connection (1)
and disconnect.

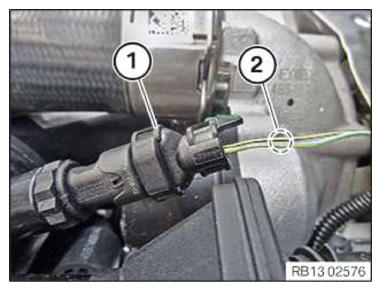

- Ensure that the intake air temperature sensor connector (1) is not confused with the high pressure pump connector.
- If necessary, identify the connector using the wiring diagram by means of cable colors in area (2)
.

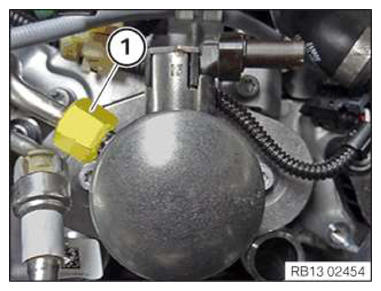

- Loosen nut (1)
.

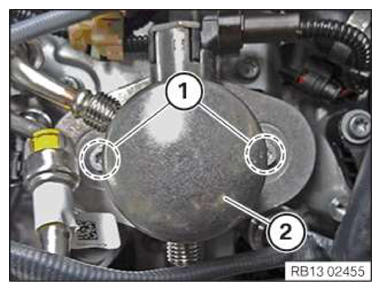

- Release the screws (1)
on high pressure pump (2)
.

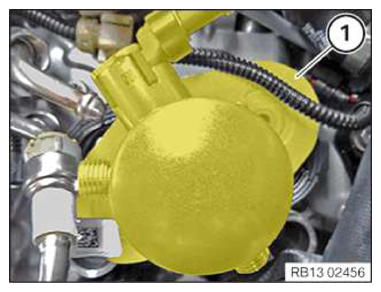

- Turn the high pressure pump (1) anti-clockwise and remove it.
