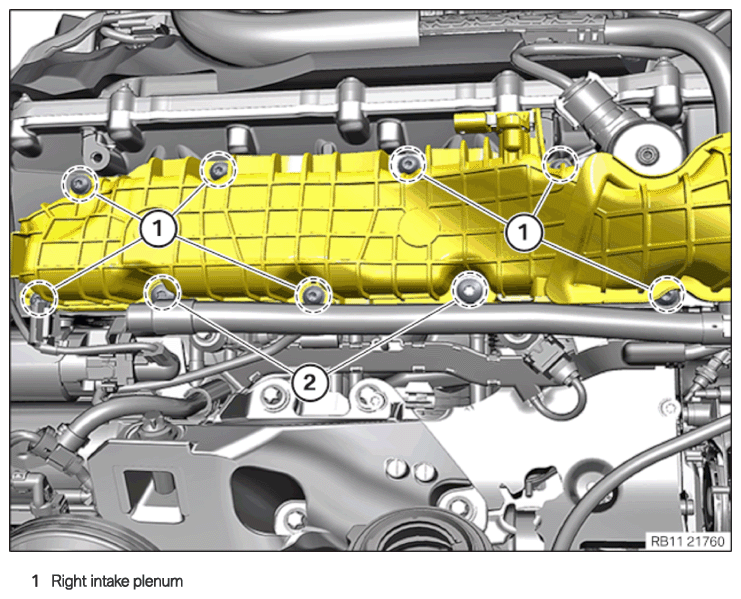

Installing the right intake plenum

Screws of the right intake plenum

Courtesy of BMW OF NORTH AMERICA, INC.

Arrows Screws

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

Replace the seal (1) .
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.
Check seal (1) at the charge air cooler (2) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Clean the sealing surface (1) using special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.
Guide the intake plenum (2) in to the right and install.

Tighten the screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Intake plenum
M8 screw	Tightening torque	21.4 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Intake plenum
M6 screw	Tightening torque	10 Nm

Connect and lock the connector of the intake air temperature sensor.
Fix wiring harness fasteners (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (2) and lock.
The connector (2) must engage audibly.
Connect and lock tank vent line (1) .
The tank vent line (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Lock clamp (1) .

Clamp (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
