Installing the left intake plenum
Screws of the left intake plenum
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
- Replace the seal (1)
.
Parts: Seal
- Check the seal (1)
on the charge air cooler (2)
for damage, replace it if necessary.
- Clean sealing surface (1) with special tool 0 495 102 (11 4 470)
.
- Feed in and install the intake plenum (1) .

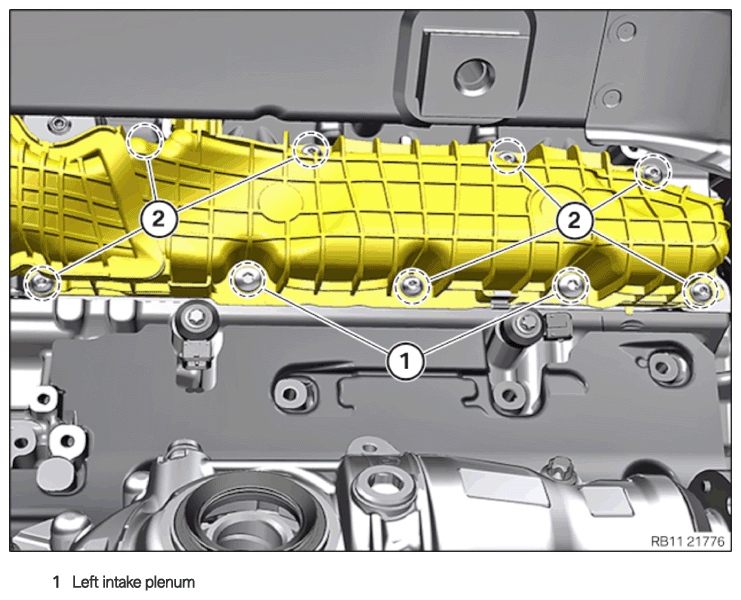

- Tighten the screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Intake plenum M6 screw Tightening torque 10 Nm - Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Intake plenum M8 screw Tightening torque 21.4 Nm - Connect connectors (2)
and lock.
The connector (2) must engage audibly.
- Connect and lock tank vent line (1)
.
The tank vent line (1) must engage audibly.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Insert and install the air conditioning compressor (5) .
- Tighten down screws (4)
.TIGHTENING TORQUE SPECIFICATIONS
Air conditioning compressor to holder/engine M8 tightening torque 22 Nm - Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Position the drive belt (1)
on the belt pulley (2)
of the air conditioning compressor (5)
.
- Maintain the preload of the belt tensioner (1) using a suitable socket wrench (3) .
- Remove the special tool 0 496 268 (11 0 390) (2)
from the belt tensioner.
- Loosen the belt tensioner (2)
counterclockwise using a suitable socket wrench (1)
.
- Connect the transmission oil lines (2) .
- Lock the locks (1)
in the arrow direction.
The locks (1) must engage audibly.
- Lock clamp (1) .
Clamp (1) must engage audibly.
