Engine - Cylinder Head/Valve Cover (3 Of 6) - Repair (G12)
>>
11 12 Cylinder Head, Valve Cover
>>
11 12 105 Removing and installing the left cylinder head (750i 2016-2019)
>>
Preparing special tool 8.5 mm
Preparing special tool 8.5 mm
Clamp special tool
0 493 997 (11 8 350)
in a vice.

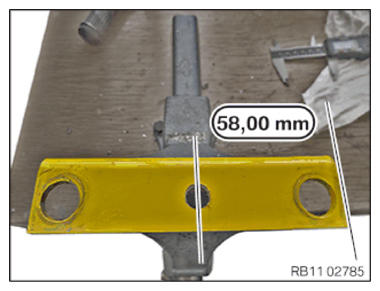

Mark out with a tape measure 58 mm. And drill a 8.5 mm hole (see graphic).
Courtesy of BMW OF NORTH AMERICA, INC.
