Installing the right-hand ventilation line

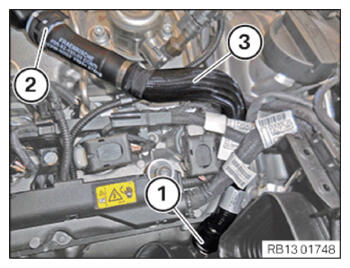

- Insert and install the ventilation line (3).
- Connect the ventilation line (3) to the check valve of the crankcase ventilation and secure it with the circlamp (2).
- Connect the ventilation line (3) to the clean air pipe and audibly lock the lock (1).
Follow-up work
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
