Installing transmission wiring harness
Transmission wiring harness

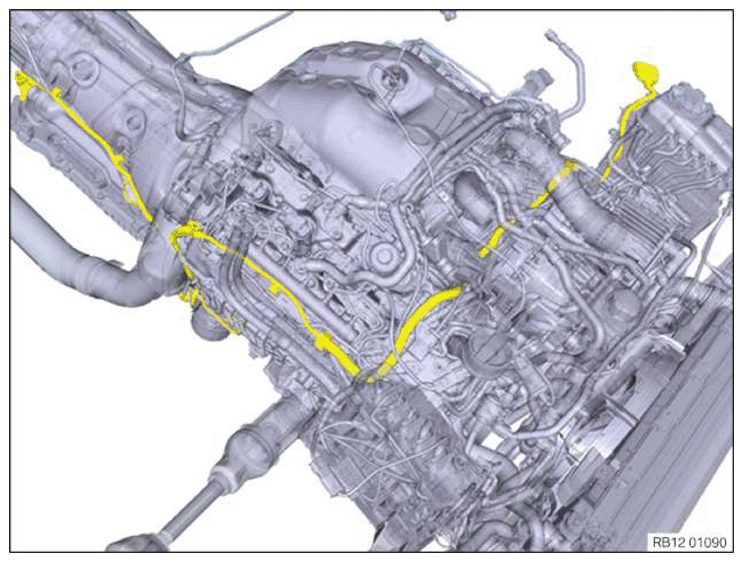

- Route the wiring harness according to the graphic RB12 01090 and fasten.

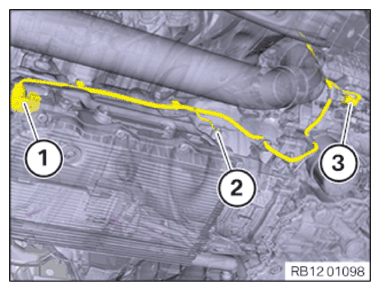

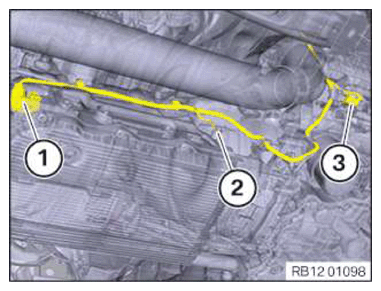

- Connect the connector (1) on the transmission and audibly lock.
- Connect the ground cable and tighten the nut (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable to transmission | |
|---|---|
| Tightening torque | 8 Nm |
- Connect the connector (3)
on the starter motor and audibly lock.

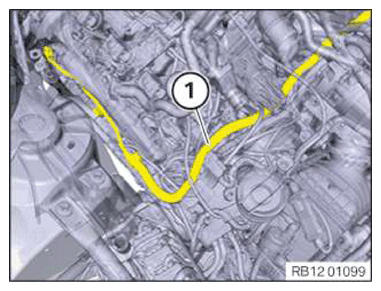

- Lock the wiring harness (1)
and fasten to the clamps.

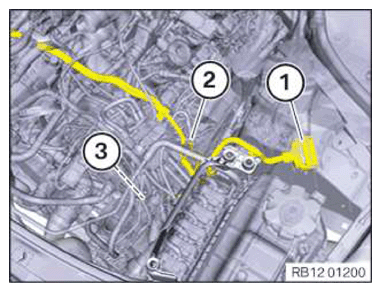

- Connect the connector (1) , it should lock audibly.
- Fasten the wiring harness (2) to the clamps.
- Connect the connector (3) to the air conditioning compressor and lock audibly.
Follow-up work
- Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE TURBOCHARGER .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING FRONT CROSS CONNECTION (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING BOTH FRONT-END STRUTS .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
