Release the guide rail of the cylinders 1 to 4

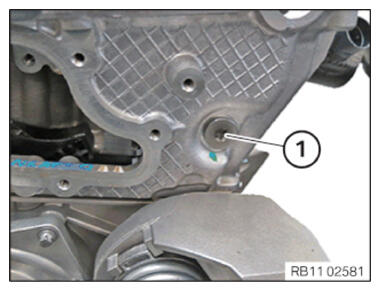

NOTE: The figure shows cylinders 5-8.

Loosen screw (1) .

G15188394

Courtesy of BMW OF NORTH AMERICA, INC.
