If installed: Loosen active stabilizer (additional work for ARS)
Remove the cover for the steering assembly on the right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the cover of the steering assembly
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

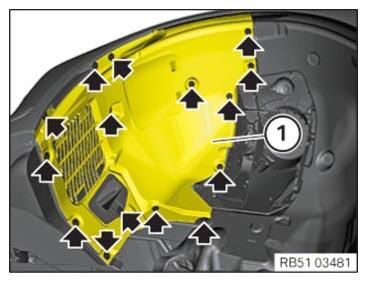

- Release all bolts (arrows).
- Remove cover (1) .
Remove the front right wheel arch cover front section
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the front section of the front wheel arch cover
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

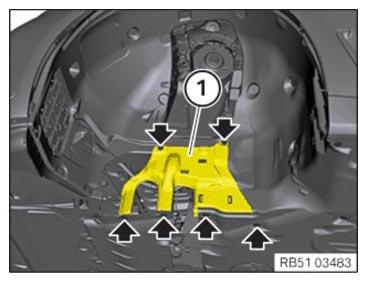

- Remove screws (arrows).
- Guide out the front section (1) of the front wheel arch cover.
Remove the active stabilizer from the front axle support

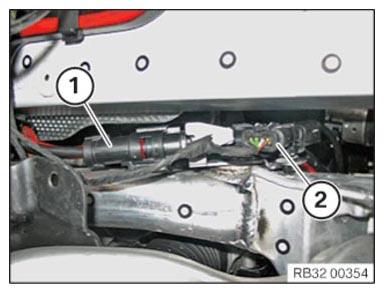

- Disconnect plug connection (1)
and (2)
.

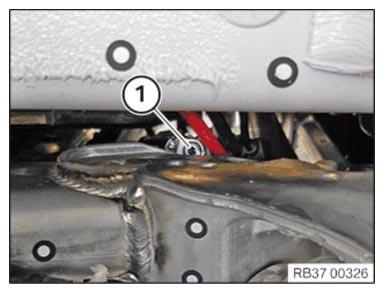

- Unscrew the bolt (1)
on the front axle support and slide the wiring harness mounting to the side.
- Unscrew the bolt (1)
and guide the wiring harness with the holder out.

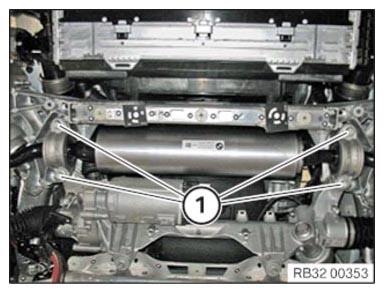

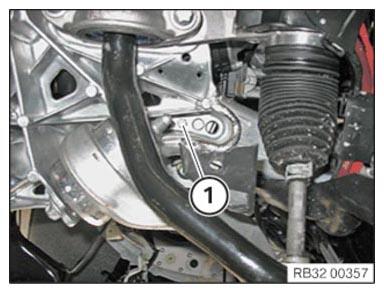

- Unscrew the bolts (1) from stabilizer mount and remove the active stabilizer from the front axle support.
