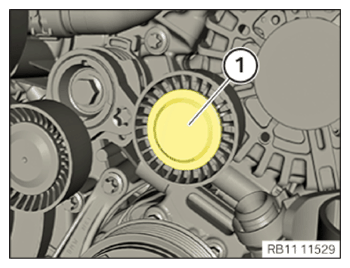

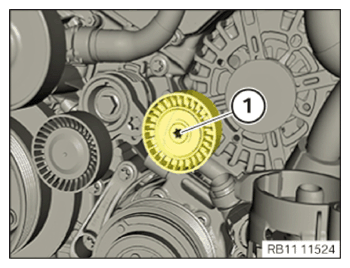

Removing the idler pulley
Preliminary work
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING FRONT ORNAMENTAL GRILLE .
- Refer to PARTIALLY REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to REMOVING FRONT BUMPER COVER .
- Refer to REMOVING BOTH HEADLIGHTS .
- Refer to REMOVING THE CENTER TOP CROSS CONNECTION .
- Refer to REMOVING THE FANFARE HORN ON THE LEFT .
- Refer to REMOVING THE FANFARE HORN TOWARDS THE RIGHT .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Refer to REMOVING THE LEFT-HAND AIR DUCT .
- Refer to REMOVING RIGHT AIR DUCT .
- Refer to REMOVING LEFT INTAKE PORT .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING FAN COWL .
- Refer to INSTALLING THE PROTECTIVE SHIELD ON THE RADIATOR .
- Refer to REMOVING THE DRIVE BELT FOR ALTERNATOR 2 AND THE AIR CONDITIONING COMPRESSOR .
- Refer to REMOVING THE DRIVE BELT FOR ALTERNATOR .
