Removing the oil line (double pipe) from the crankcase
Preliminary work
- Refer to RELEASING THE OIL DRAIN PLUG .
- Refer to RELEASING THE CONNECTOR OF THE OIL PAN'S OIL LEVEL SENSOR .
- Refer to RELEASING THE OIL PAN SCREW CONNECTION OF THE LOWER OIL PAN .
- Replace O-rings.
Parts: O-rings

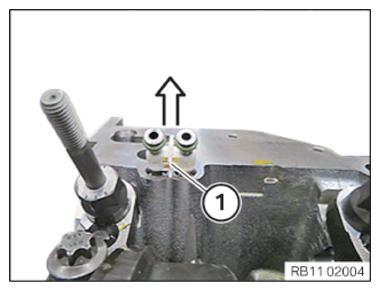

- Pull off the oil line (double pipe) (1) in the arrow direction.
