Body Equipment -- Repair (2 Of 3) (G12)
>>
51 41 Front Door Trim Panel With Armrests
>>
51 41 001 Replacing left or right front door trim panel
>>
Cutting out the cutout for the trunk lid lock switch
Cutting out the cutout for the trunk lid lock switch

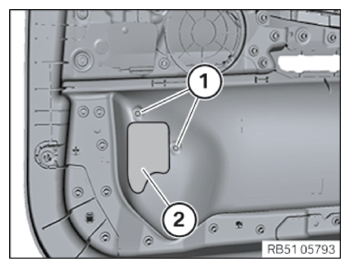

Carefully drill through the marked bores
(1)
with a Ø 4 mm drill bit.
Carefully cut out the cutout
(2)
along the embossing (marking) using a suitable tool (e.g. a body saw).
Courtesy of BMW OF NORTH AMERICA, INC.
