Install Cover Housing

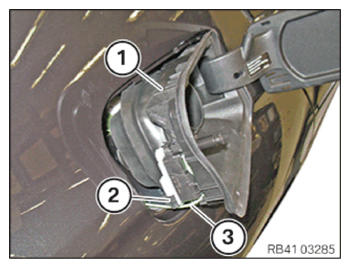

• Insert the luggage strap for emergency operation (3).
• Push the cover housing (1) towards the front at an angle into the side panel.
• Connect the plug connection (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

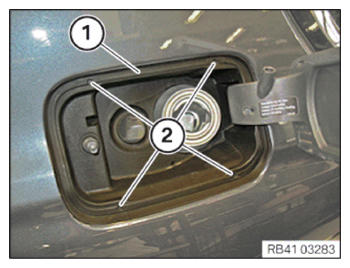

• Clip in the cover housing (1) into the side panel.

The detents (2) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

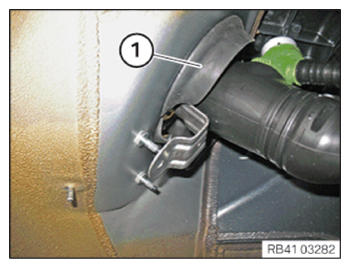

• Check the sealing lip (1) is positioned correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The sealing lip (1) is not evenly in contact with the wheel arch.

  Measure

  • Connect the sealing lip (1) to the wheel arch.

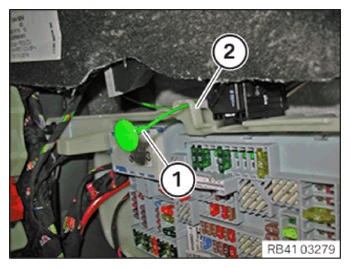

• Attach the luggage strap of the emergency operation (1) to the guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.
