Installing the emblem

Build level through 03.19:

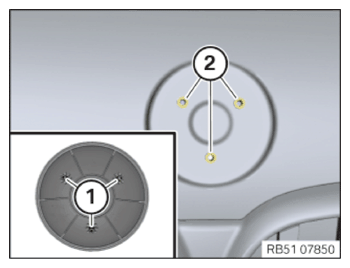

Check the guide pins (1) and the grommets (2) for damage, replace if necessary.

The guide pins (1) and grommets (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

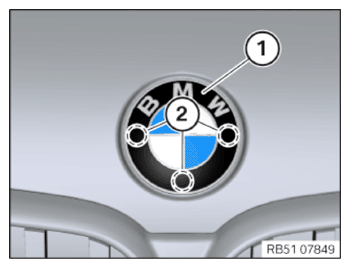

Position the emblem (1) with the guide pins (2) and press it in the grommets.

Courtesy of BMW OF NORTH AMERICA, INC.
Production version from March 2019:
Check the guide pins (1) and the nozzles (2).

Replace the emblem in case of defective guide pins (1).

Replace broken or missing nozzles (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the emblem (1) with the guide pins (2) and press it in the grommets.

Courtesy of BMW OF NORTH AMERICA, INC.
