Disconnect the coolant pump plug connection

Tilt the coolant pump slightly forward.

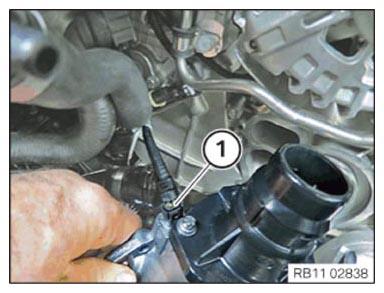

Unlock the plug connection (1) with a screwdriver and disconnect it.

G14425619

Courtesy of BMW OF NORTH AMERICA, INC.
