Detach the coolant feed line on the exhaust turbocharger for cylinders 1 to 4
Detach the coolant feed line on the exhaust turbocharger for cylinders 1 to 4

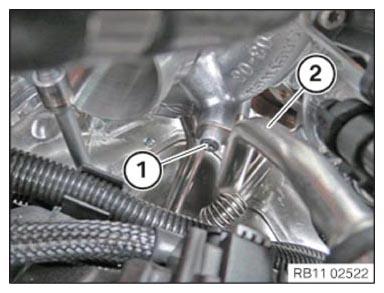

Release screw (1) exhaust turbocharger.
Feed the coolant feed line (2) out.
