Removing and installing/replacing additional brake light (328d xDrive Wagon)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 325
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

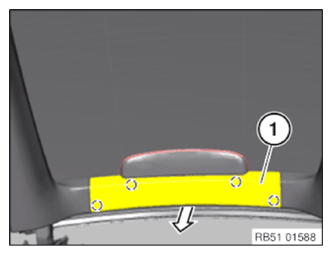

Release the trim panel (1) at the clips using special tool 00 9 325 and remove.

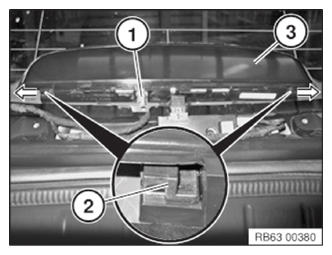

Unlock plug connection (1) and disconnect.
Unlock the slide (2) in the direction of the arrow and remove the additional brake light (3) from the rear window.
Installation note:
Make sure the slide (2) is correctly locked.
